Stovax

Stovax Studio 2 Solid Fuel Fire

Studio Edge Inset Wood Burning Fires The Stovax Studio Edge inset fire is for those who require minimalist modern perfection. This contemporary wood burning fire has a seamless no-frame design,...
£3,314.00
-
+
£3,314.00
Add to wishlist

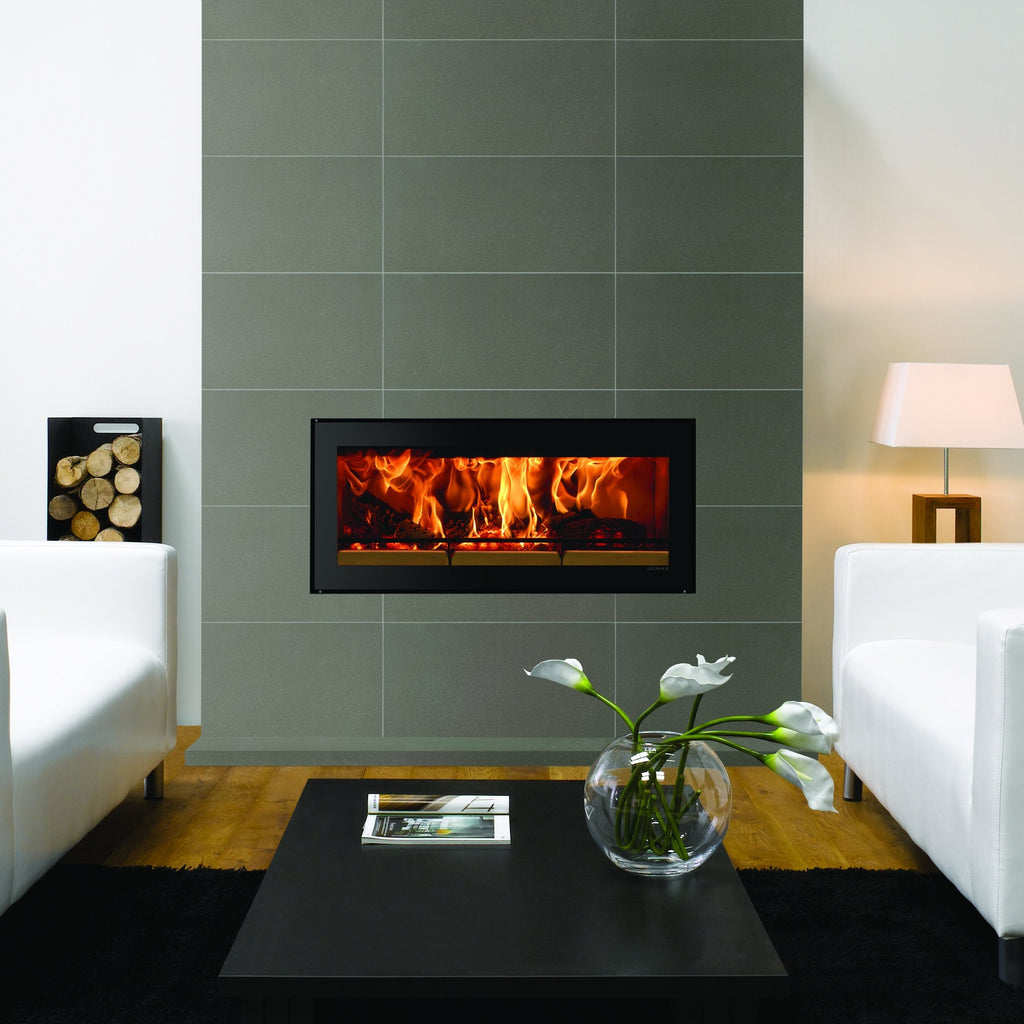

Studio Edge Inset Wood Burning Fires

The Stovax Studio Edge inset fire is for those who require minimalist modern perfection. This contemporary wood burning fire has a seamless no-frame design, allowing your home’s interior to frame and enhance the roaring flames. Combine this with the optional fan-assisted convection system and you can boost the flow of heat into your room whilst providing a beautiful focal point.

The Studio™ 500 has been specifically designed to fit into a standard 22” British fireplace opening without any additional building work.

KEY FACTS

Brand Stovax
Ecodesign Ready** ✔️
High efficiency up to 80%
Wood burning ✔️
Boost setting for lighting and re-fueling ✔️
Removable steel and TCL baffles ✔️
TCL firebox lining ✔️
Radiant heat and convected heat ✔️
External air facility ✔️
Optional fan-assisted convection system ✔️
Optional warm air ducting system ✔️
Top flue connection (internal Ø) 153mm (6”)
Suitable for Smoke Control Areas* ✔️
Double-sided version available ✔️

* Sizes 500, 1 and 2 only. When fitted with a Smoke Control Kit and used in accordance with the operating instructions.
** Studio 1,2 & 3 only.

STUDIO EDGE INFORMATION

Fire Size Nominal Heat
Output & Range
Max log lengths Frame dimensions mm
(wxhxd) Edge
Frame dimensions mm
(wxhxd) Edge ‘Cool Wall’
Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 550 x 421* 550 x 428* A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 743 x 421* 743 x 428* A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 943 x 446* 943 x 453* A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16") 943 x 457* 943 x 457* A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1330 x 451* 1330 x 463* A

*Dimensions given are those overall visible upon installation. Once installed, Edge kits are flush with the finished wall surface. Edge ‘Cool Wall’ kits are recessed 28mm (Studio 500, 1 & 2) or 13mm (Studio 3) from the finished surface.

Studio Profil Inset Wood Burning Fires

The Stovax Studio Profil inset fire features ultra-contemporary styling that fits in perfectly with all modern interiors. The wood-burning Studio Profil is finished in Metallic Black and is available on all sizes of Studio fires.

In addition, by fitting the optional ducting system you can also heat up to two adjacent living spaces with your Studio 500, 1 and 2 and up to four when you chose a Studio 3.

STUDIO PROFIL INFORMATION

Fire Size Nominal Heat
Output & Range
Max Log Lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 646 x 517 x 33 A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 839 x 517 x 33 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 1039 x 542 x 33 A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16”) 1089 x 592 x 33 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1426 x 547 x 45 A



Studio Glass Inset Wood Burning Fires

With its crisp lines and reflective surface, the Stovax Studio Glass wood burning inset fire offers you a complete focal point around which to create your very own distinctive decorative style.

This sleek frame is available in all four Studio inset fire sizes, giving you the versatility to match your personal design and heating needs.

Studio 500, 1 and 2 sizes are available with an optional kit for use in smoke control areas.

All Studios are high-efficiency wood-burning fires, with an 80% heating efficiency.

STUDIO GLASS INFORMATION

Fire Size Nominal Heat
Output & Range
Max log lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 1016 x 573 x 8 A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 1209 x 573 x 8 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 1445 x 628 x 8 A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16") 1445 x 628 x 8 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1932 x 653 x 8 A



Studio Steel Wood Burning Fires

The Stovax Studio Steel inset fire is for those with large spaces who wish to create a greater presence with their choice of wood-burning fireplace. Finished in Metallic Black, the Studio Steel’s wide frame instantly creates a distinctive and individual focal point that can be further matched to your interior space by choosing from the various sizes available.

STUDIO STEEL INFORMATION

Fire Size Nominal Heat
Output & Range
Max log lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 1010 x 567 x 3 A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 1203 x 567 x 3 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 1439 x 622 x 3 A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16”) 950 x 550 x 402*414 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1926 x 647 x 3 A



Studio Bauhaus Inset Wood Burning Fires

The Stovax Studio Bauhaus is a wood-burning inset fire with a classic three-dimensional tapered frame. This frame is offered on all sizes of Studio inset fires, enabling you to perfectly match the Bauhaus to whatever the size and style of your room. With our refined lines of the Jet Black Metallic finish, the Bauhaus will heat your home in flawless style.

STUDIO BAUHAUS INFORMATION

Fire Size Nominal Heat
Output & Range
Max Log Lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 657 x 528 x 36 A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 850 x 526 x 36 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 1050 x 554 x 36 A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16”) 1090 x 594 x 36 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1437 x 559 x 49 A



Studio Edge + Inset Wood Burning Fires

New to the range and as a continuation from the Stovax Studio Edge, the Edge + inset wood burning fire provides a similarly frameless ‘hole in the wall’ fire look, yet offers the additional benefit of a more simplified finishing process.

A slim profile decorative frame, crafted from 1mm thick steel, overlays the finished wall surface and provides a perfectly crisp finish around the installation opening.

With a complementary Matt Black finish, the Studio Edge + inset fire is a sophisticated and functional styling option that simply lets the Studio’s impressive wood-burning flame picture provide all the aesthetic appeal!

STUDIO EDGE + INFORMATION

Fire sizes Nominal Heat
Output & Range
Max log lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 700 x 573 x 34* A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 785 x 463 x 1 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 983 x 488 x 1 A
Studio 2 Duplex 9.0kW (3.5-12kW) 400mm (16”) 983 x 488 x 1 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1372 x 493 x 1 A

Once installed, the Edge kits are flush with the finished wall surface. Edge + kit includes decorative frame
*Depth is adjustable between 32mm and 52mm between Edge + frame and kit when fitted

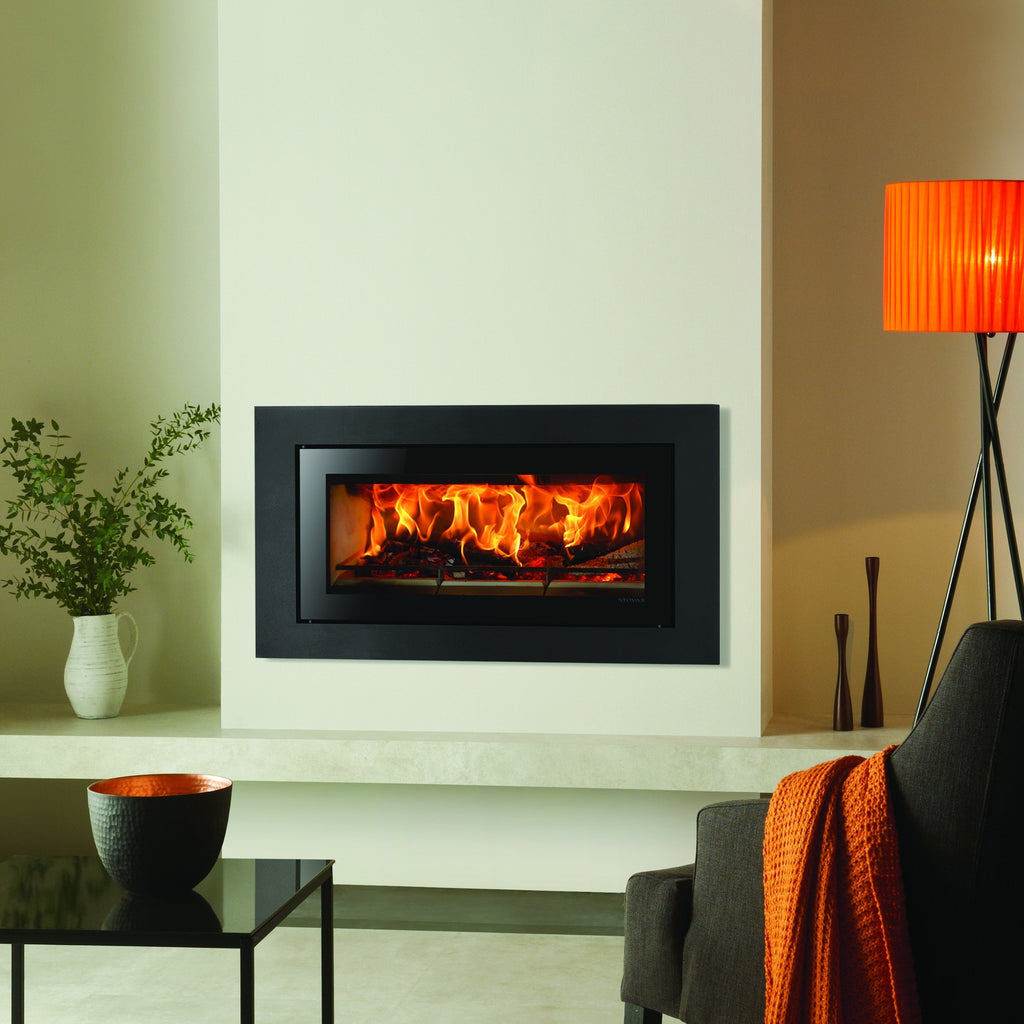

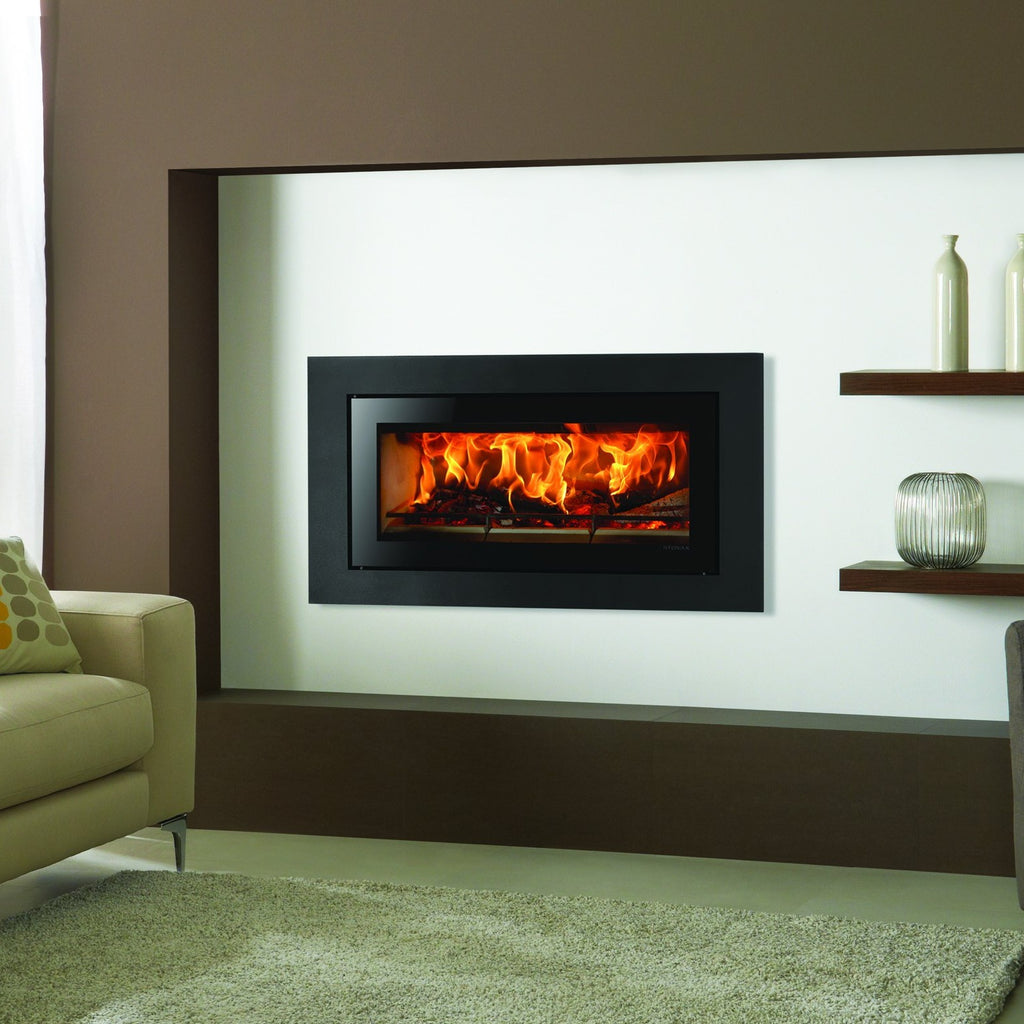

Studio Steel XS Inset Wood Burning Fires

Similar to the existing Stovax Studio Steel inset wood burning fire, the Studio Steel XS has slimmer proportions and offer a very different look, complementing the Studio’s distinctive widescreen flame picture.

This wood-burning fire is finished in Metallic Black to really create the wow factor.

STUDIO STEEL XS INFORMATION

Fire Size Nominal Heat
Output & Range
Max log lengths Frame dimensions mm (wxhxd) Energy Efficiency Class
Studio 500 5.0kW (1.7-7kW) 250mm (10”) 688 x 567 x 34 A
Studio 1 5.0kW (1.7-7kW) 300mm (12”) 881 x 567 x 34 A
Studio 2 8.0kW (2.8-11.kW) 400mm (16”) 1111 x 622 x 34 A
Studio 2 Duplex 9kW (3.5-12kW) 400mm (16") 1111 x 622 x 34 A
Studio 3 11.0kW (3.8-16kW) 500mm (20”) 1518 x 647 x 48 A



Technical Information:

https://www.stovax.com/information/technical-information/
